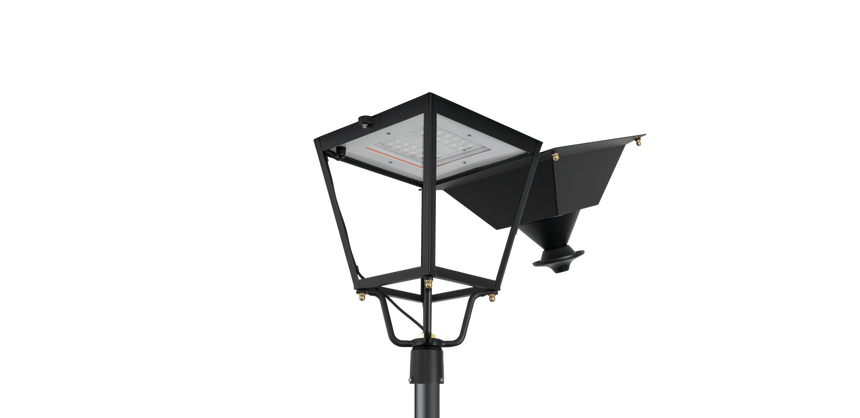

Edison

Armatura stradale per arredo urbano a LED

Eficiencia energética

Source efficiency 192 lm / W @ 160mA 4000 ° K
Net effective efficiency 156 ~ 165 lm / W
LED power supply current <100mA
Optical group PMMA lenses - ULOR = 0% LOR = 100% DLOR = 100%
Color temperature 2200 ° K / 2700 ° K / 3000 ° K / 4000 ° K
Color Rendering Index > 70%
Photobiological risk Exempt Group
LED diode life > 100,000 hh L90B05
Color RAL 7043
Gasket Pure silicone
Guarantee 10 years

Datos técnicos

power supply Multiple on single chip, integrated into the LED board
Supply 230Vac ± 10% 50/60 Hz
Insulation class Class II
PF > 0.98
Degree of protection IP66
Resistance index IK08
Operating Temp. ° C -30 ° / + 50 ° C
Power connection 2-pole cable, max section 4mm2
Apparatus assembly Pole head Ø42-60mm
Tilt adjustment
Body material Powder coated UNI1706 aluminum alloy
Screen 5mm ultra bright tempered glass
TLC ready Yes
Card protection Ultra-fast fuse, MOV
SPD protection 10kV

PLANTILLA:
EDS01

DIMENSIONES:
440x440x800 mm

PESO:
8.6 kg

PLANTILLA:
EDS02

DIMENSIONES:
440x440x800 mm

PESO:
8.6 kg

Versiones

  Código Energía
@ 230 Vac
° kelvin Fuente
corriente
Dispositivo
de flujo
Eficiencia CRI Dimensiones
Peso

EDS01 25 W 2200 / 3000 / 4000 4800 lm/W 3600 lm/W 144 lm/W >70 440 x 440 x 800 mm
8,6 kg
ldt
EDS02 50 W 2200 / 3000 / 4000 9600 lm/W 6900 lm/W 138 lm/W >70 440 x 440 x 800 mm
8,6 kg
ldt
