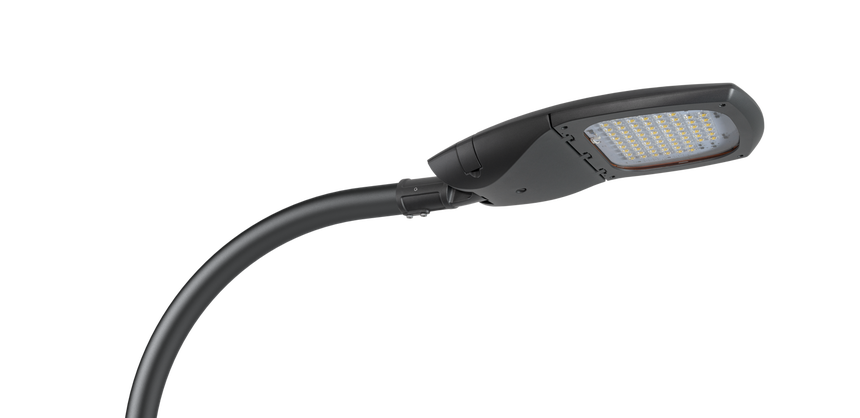

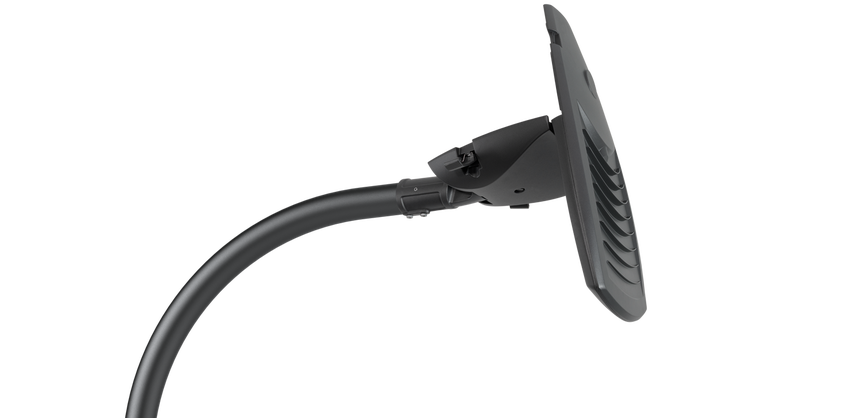

Smartlite L

Street Light LED from 18.750 lm, flat tempered glass, PMMA optics, 3000/4000° K

Armatura stradale ad altissima efficienza, senza alimentatore, con tripla protezione (fusibile-scaricatore-varistore), ottiche intercambiabili e sistema di sgancio rapido senza utensili.

Eficiencia energética

Source efficiency 192 lm / W @ 160mA 4000 ° K
Net effective efficiency 156 ~ 165 lm / W
LED power supply current <100mA
Optical group PMMA lenses - ULOR = 0% LOR = 100% DLOR = 100%
Color temperature 3000 ° K / 4000 ° K / 5700 ° K
Color Rendering Index > 70%
Photobiological risk Exempt Group
LED diode life > 100,000 hh L90B05
Color RAL 7043
Gasket Pure silicone
Guarantee 10 years

Datos técnicos

Power supply Multiple on single chip, integrated into the LED board
Supply 230Vac ± 10% 50/60 Hz
Insulation class Class II
PF > 0.98
Degree of protection IP66
Resistance index IK09
Operating Temp. ° C -30 ° / + 50 ° C
Power connection 2-pole cable, max section 4mm2
Apparatus assembly Pole top or arm, Ø33-64mm (opt. Ø60-76mm)
Tilt adjustment -15 °, -10 °, -5 °, 0 °, + 5 °, + 10 °, + 15 °
Body material Powder coated UNI1706 aluminum alloy
Screen 5mm ultra bright tempered glass
TLC ready Yes
Card protection Ultra-fast fuse, MOV
SPD protection 10kV

PLANTILLA:
SML05

DIMENSIONES:
765x380x118 mm

PESO:
8.0 kg

PLANTILLA:
SML06

DIMENSIONES:
765x380x118 mm

PESO:
8.0 kg
